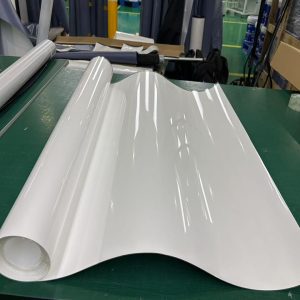

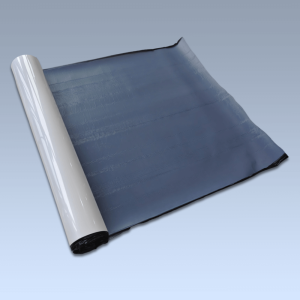

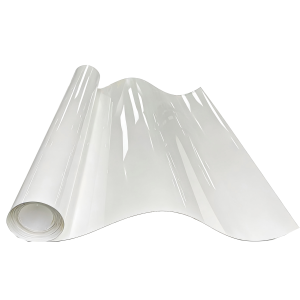

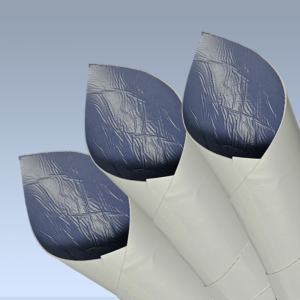

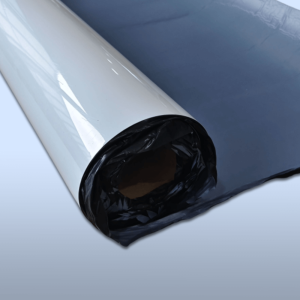

REFLECTIVE RADIATIVE
COOLING FILM
Made with inorganic functional materials. Suitable for grain silos, warehouses, factories, electrical cabinets.
Applicable to most surfaces such as concrete, steel roof panel, metal doors
Self-cleaning & hydrophobic
Self-cleaning surface with super-hydrophobicity, reducing maintenance costs
Easy Handling & Installation
Factory manufactured with glue in the back, easy installation, suitable for various projects
Weathering resistance
Salt fog resistance (1500h), Wet-hot resistance (1500h) Service life: Stable cooling performance for 10 years
Eco-friendly
Safe, non-toxic and environmentally friendly ingredients, RoHS and REACH compliant
Features
Surface Temperature Reduction
25~45℃
Internal Temperature Reduction
7~15℃
Optimized models for different applications
AZ98900 (CN Designation F100G-G)
Reflective radiative cooling film for all substrate. 98% reflectance. Suitable for any outdoor cabinets, equipment surfaces, roofs and walls.
AZ94900 (CN Designation F100G-D)
Reflective radiative cooling film for all substrate. 9% reflectance. Suitable for any outdoor cabinets, equipment surfaces, roofs and walls.
| Test Item | Test Method | Parameters | Units |
|---|---|---|---|
| Thickness | GB/T 6672-2001 | 300/900 | μm |
| Width | GB/T 6673-2001 | 84/100 | cm |
| Length | GB/T 6673-2001 | 40/21 | m |
| Color | Visual Inspection | White (Customizable) | / |
| Flame Retardancy | GB/T 20284/2006 | B1 | Class |
| Solar Reflectance | JG/T235-2014 | 94 ~ 98 | % |
| 8-13μmEmission Rate | T/ZZB-2304 | 94 ~ 98 | % |
| Radiative Cooling Power | T/ZZB-2304 | 151 | W/m2 |
| Radiative Cooling Net Power | T/ZZB-2304 | 121 | W/m2 |
Contact us for a quote
For any questions, project inquiries, or more information about Azureera® products, please contact us. Our experts are ready to provide personalized support. The more details you provide, the better we can assist you.
